Universal Ceiling Fan Wall Switch Control Kit, 3 Speeds and Light Dimmer
Our FAN-WAT1 wall remote control kit is suitable for most 3-Speed AC ceiling fans, including the ceiling fans that with reverse switch itself.

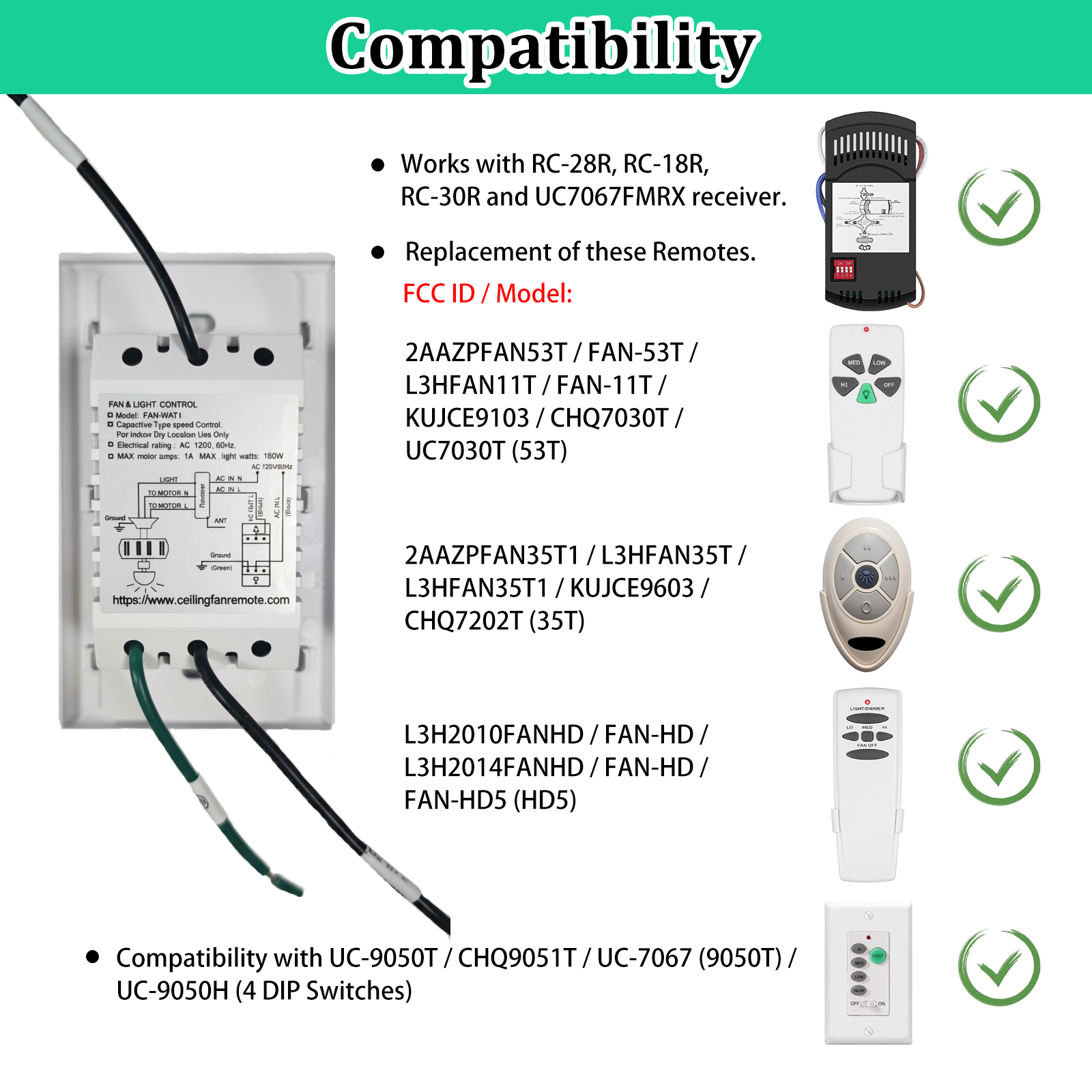

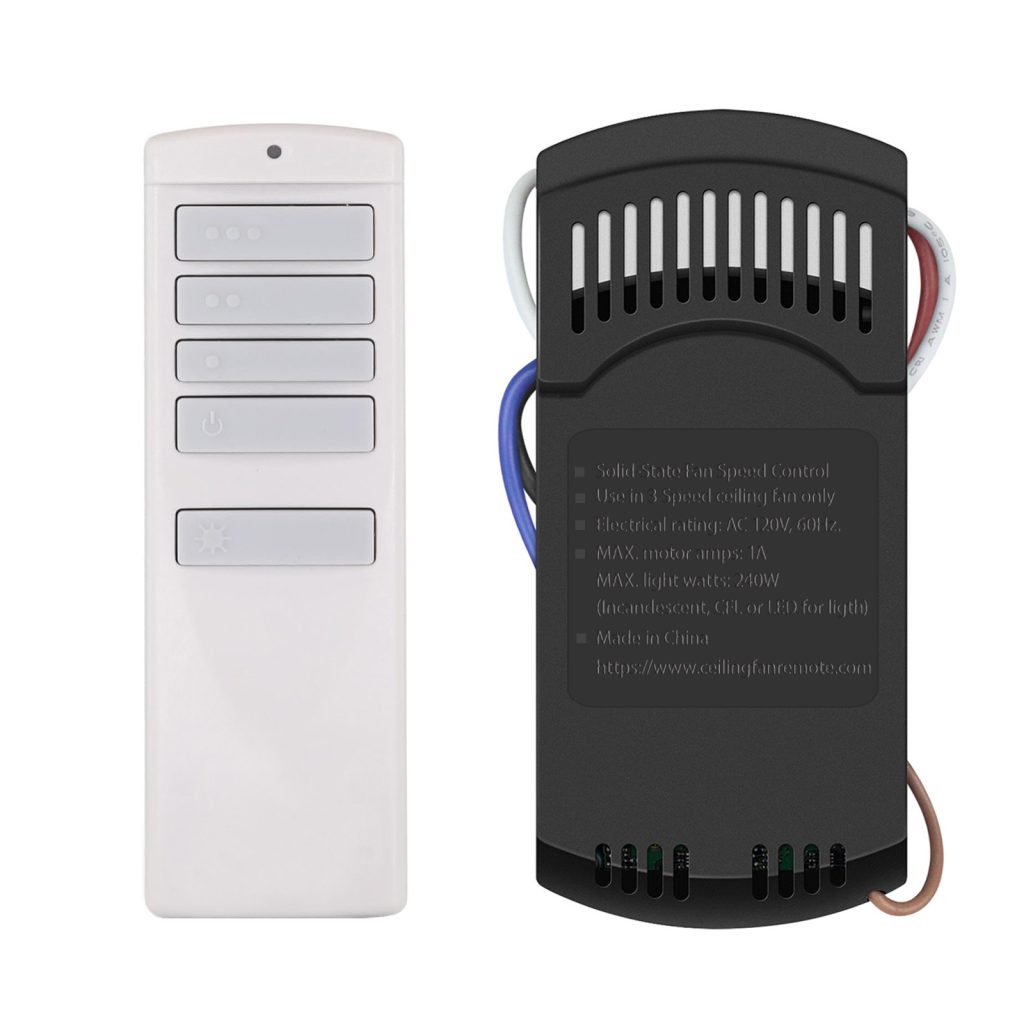

The receiver is compatible with most of remote controls, such as 53T, 35T, HD5, HD6, UC7078T, UC7080T, UC7083T.
This fan remote kit is suitable for replacement or upgrade your ceiling fans, compatible with most downrod style fans, not recommended for use with hugger style fans. It not for wall mounted fans or exhaust-type fans, and also not for DC motor ceiling fans.
HOW TO USE

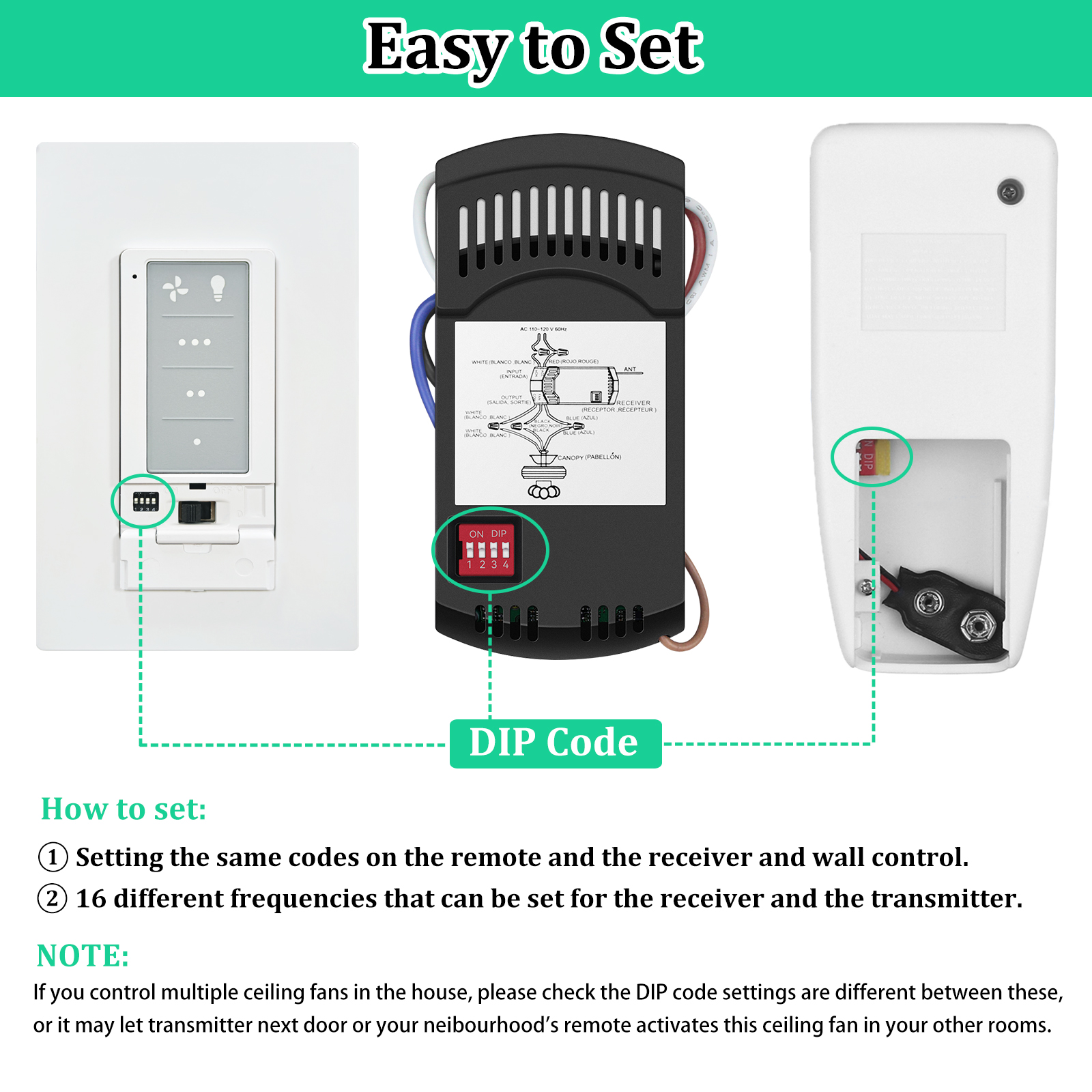

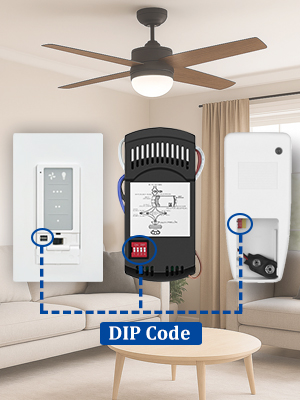

1. First, please set the DIP CODE of the receiver and transmitter to be the same before installing the receiver. ( Note: If you have purchased 2 sets or more to control different fans, please set the DIP CODE of each set to a different frequency.)

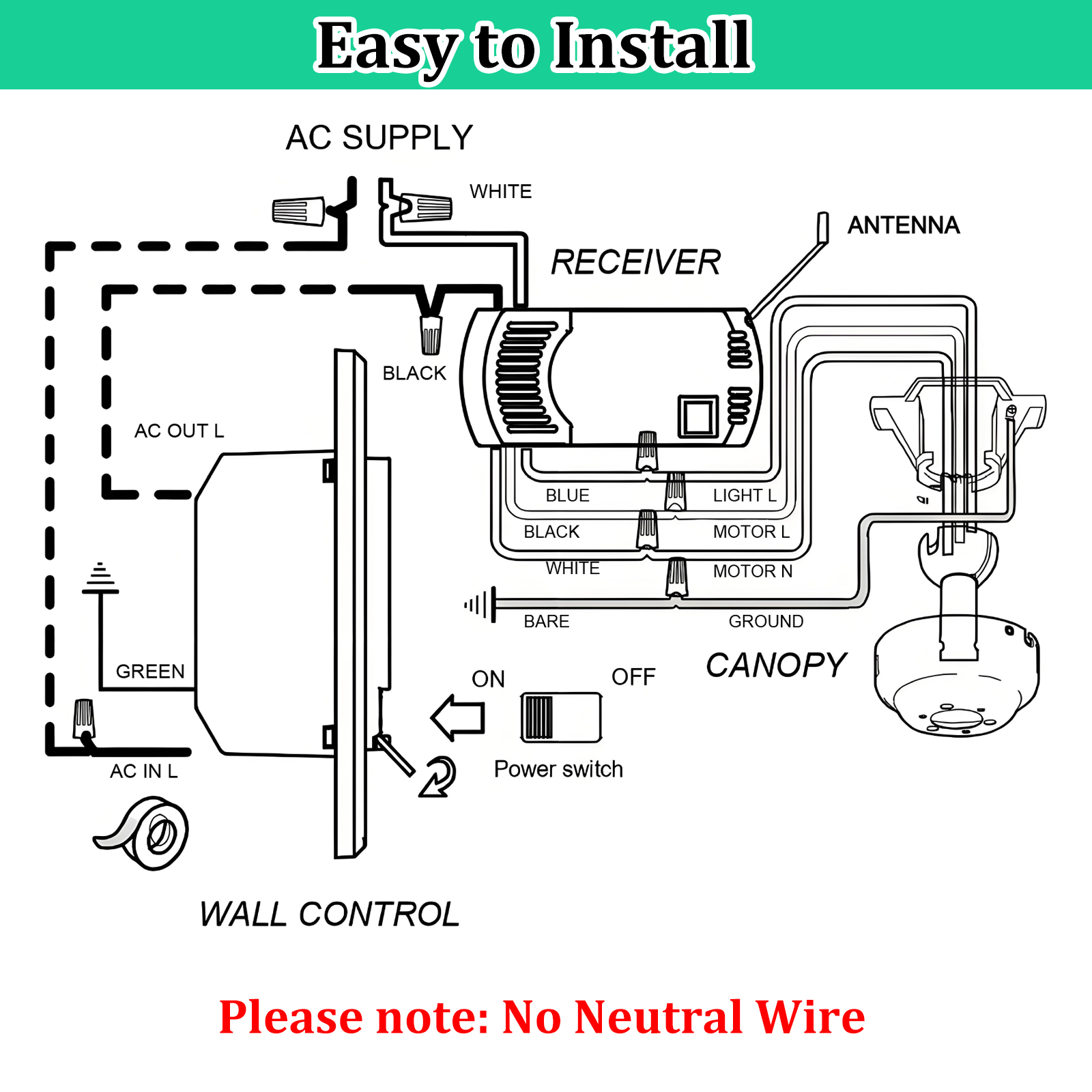

2. Before installing the receiver, please cut off the power supply of the fan, and read the instructions carefully, and install the receiver according to the instructions. Incorrect wire connection can damage this receiver.
3. Install the wall transmitter in the reserved position according to the instructions.
4. Our Receiver has 16 different frequencies for fans, so you would have to play with the combinations. Here are the frequency list:(0 is down and 1 is up) 0000, 0001, 0010, 0100, 0110, 0101, 0011, 0111, 1111, 1110, 1101, 1011, 1001, 1010, 1100, 1000

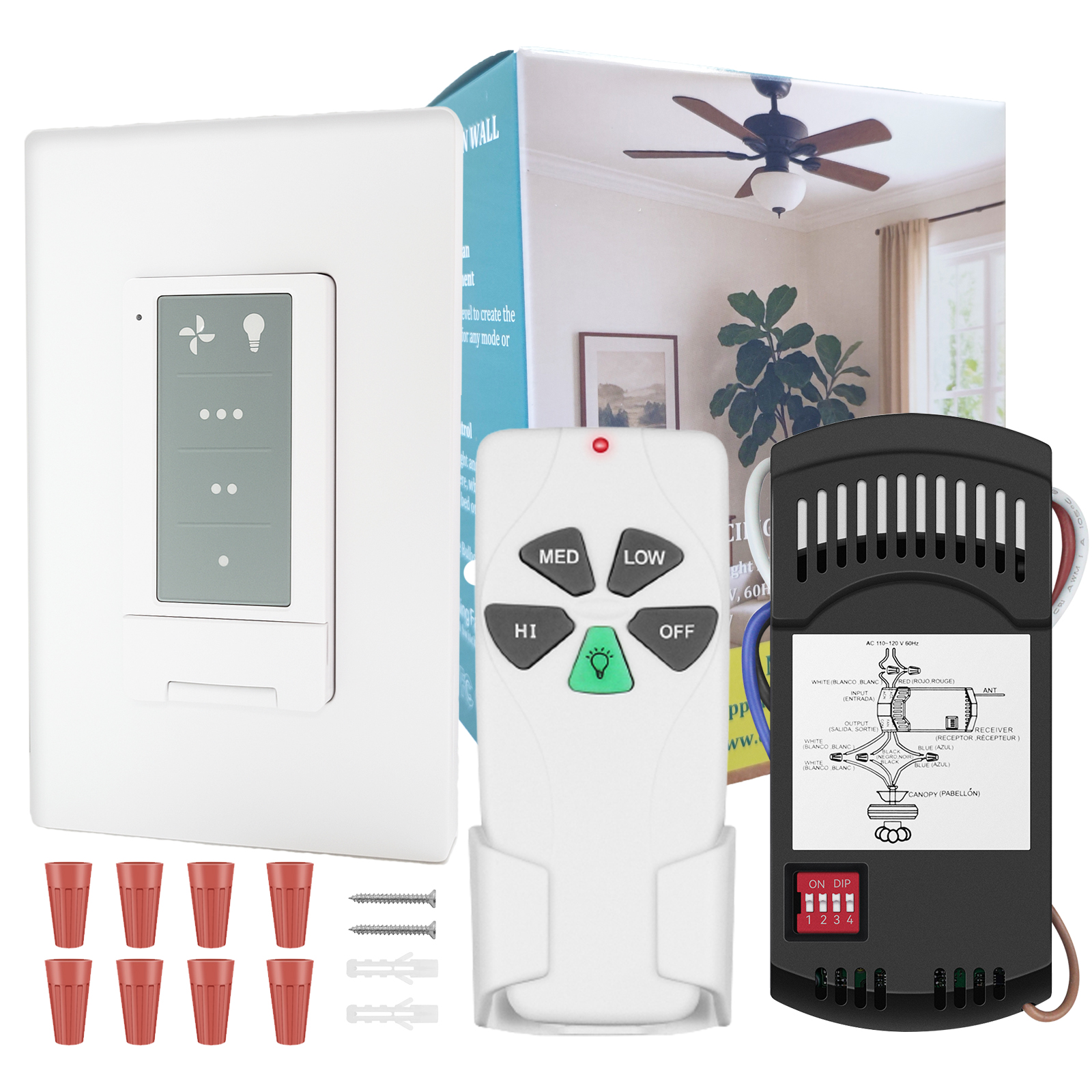

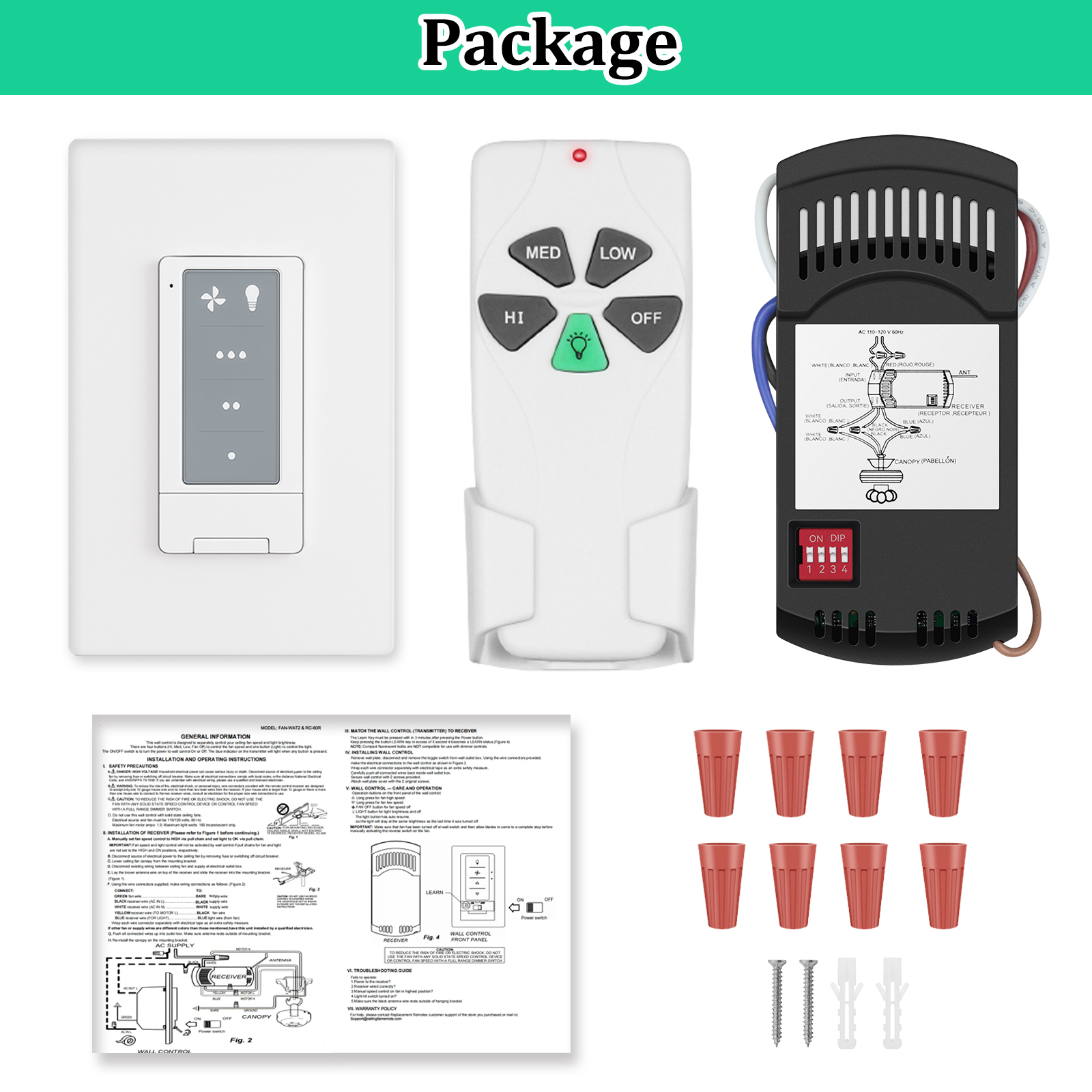

Package Includes:
Remote Wall Control *1,
FAN-53T Remote * 1,
RC-28R Receiver *1,
User Guide *1,
Wire Nuts *8,
Screws *4
