FAN28R Ceiling Fan Receiver

Name: FAN28R Ceiling Fan Receiver
SKU: 032-03
Price: 19.99 USD
Availability: InStock

$19.99

032-03 User Guide

Replace the original receiver of Hampton Bay HD5 Ceiling Fan FAN-53T FAN-35T
The rated power of this receiver is 240W, and this FAN-18R receiver work at radio frequency 303.9MHz. The superior rated power capacity carrying allows you to access more light bulbs, greatly extend the service life.
This receiver can control the ceiling fan speed(HI, MED, LOW, OFF) and light brightness(ON,OFF,DIMMING). Especially 18R receiver is compatible with incandescent light bulbs and dimmable LED/CFL lamps.If your LED lights are non-dimmable, light dimmer only supports the ON/OFF function in that case.
This receiver is easy to install. If your ceiling fan has a rod, you can simply detach the canopy and drop it down the rod to replace the receiver.If your ceiling fan is a ceiling mount- you have to detach the whole fixture, including the canopy, to replace, or install the receiver.

SKU:032-03 Category: Receiver

Description

📌 Universal Ceiling Fan Remote Control Kit

Wide Compatibility: Works with most 3-speed ceiling fans, including Hampton Bay, Hunter, Harbor Breeze, Home Decorators Collection, Honeywell, Minka Aire and more.

⚙️ Fan & Light Control

• 3 Fan Speeds: High / Medium / Low + OFF
• Light ON/OFF + Dimming Control
• Compatible with halogen, incandescent and some dimmable LED bulbs

🔄 Reverse Function Notice

No Reverse Button. Works with ceiling fans that have their own reverse switch and supports reverse fan operation.

🔧 Easy Installation

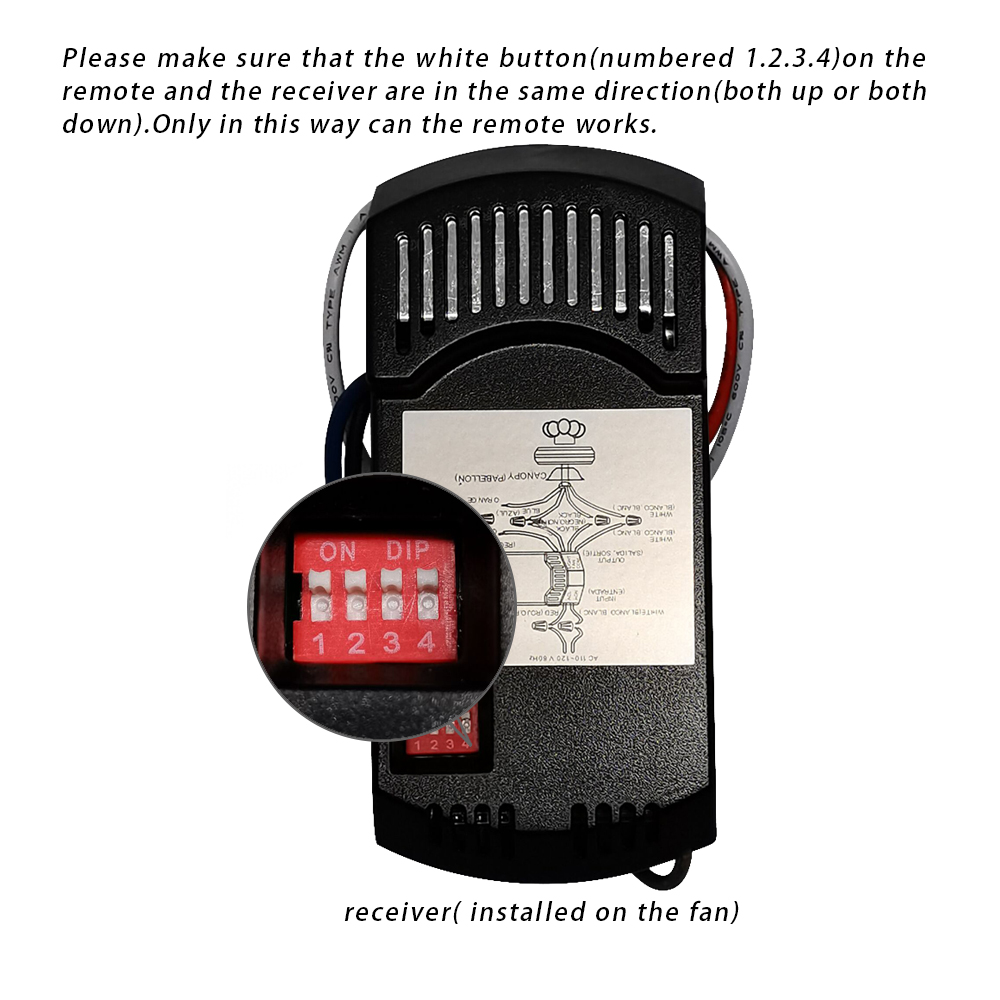

1. Match the 4 DIP switch codes on remote and receiver

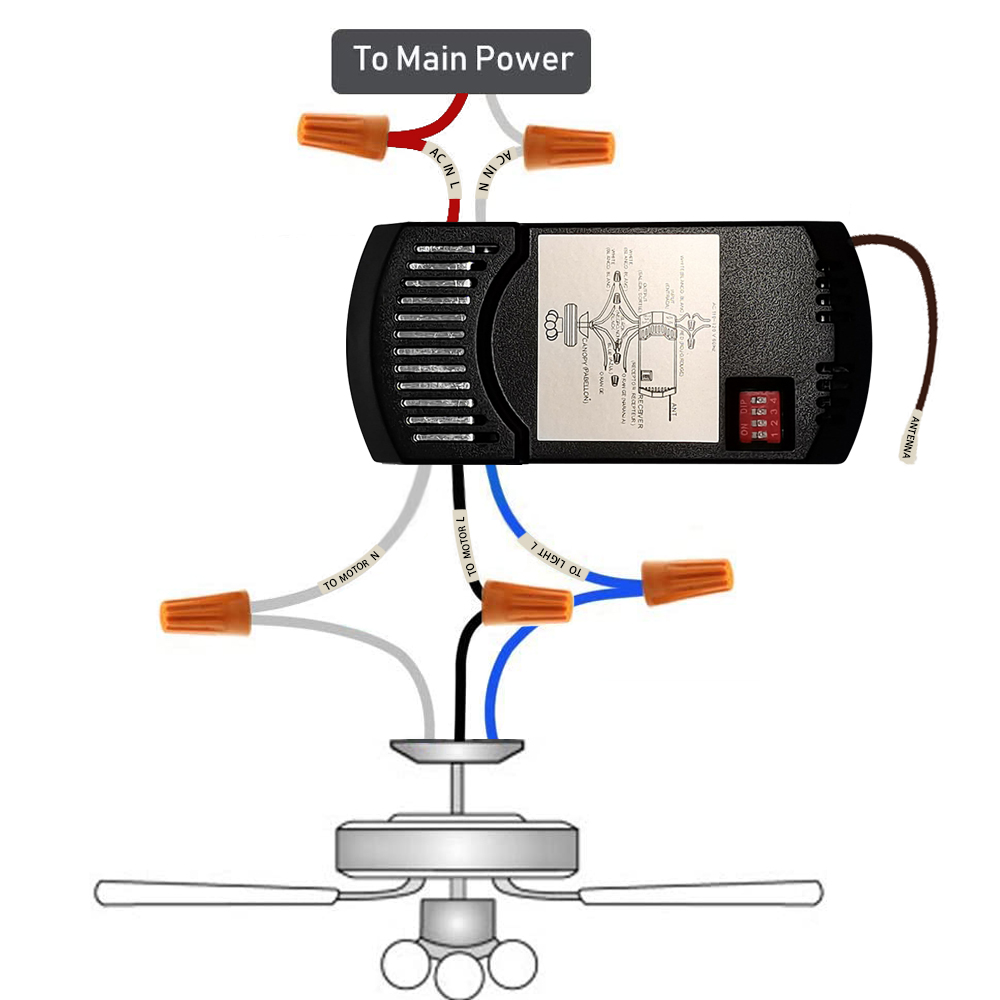

2. Install receiver into ceiling fan (disconnect power before installation)
3. Insert 9V battery into remote and start controlling

💡 Helpful Tips

• DIP switches are located inside the battery compartment
• Remote and receiver codes must match exactly for proper operation
• Compatible with 110-120V / 60Hz ceiling fans

📦 Package Includes

Controller ×1, Receiver ×1, Screws ×2, User Manual ×1.

⚠️ Note

9V Battery Not Included.
Do not use with variable wall controls.
